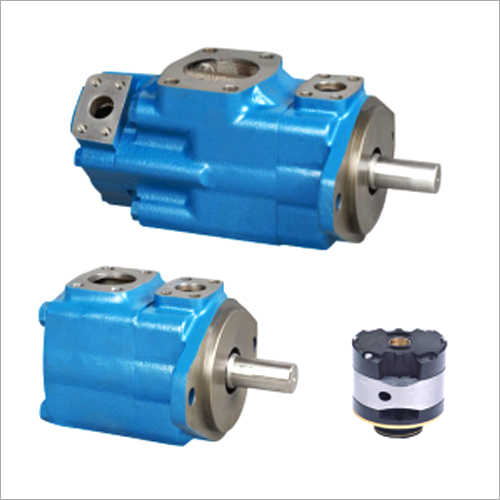

VELJAN Denison Hydraulic Vane Pumps

Get a Price/Quote

MOQ : 1 , , Number

VELJAN Denison Hydraulic Vane Pumps Specification

Flow Rate
From 10 LPM up to 300 LPM (model dependent)

Mounting Type
Flange Mount / Foot Mount

Operating Pressure
Up to 320 bar

Application
Industrial, Mobile Hydraulic Systems, Press machines, Injection molding, Material Handling

Connectivity Type
Threaded and Flange port options

Features
Low noise operation, compact design, interchangeable cartridges, excellent service life

Efficiency
High volumetric and mechanical efficiency

Sealing Type
High pressure oil seals

Accessories
Mounting flange, shaft couplings, seal kits

Power Source
Hydraulic drive - Electric Motor or Engine coupled

Temperature Range
-20C to +80C (recommended hydraulic fluid temperature)

Body Material
Cast Iron / Alloy Steel

Type
Hydraulic Vane Pump

Structure
Fixed Displacement / Variable Displacement

Force
High force output

Speed
Up to 1800 RPM (varies with model)

Voltage
Not applicable (mechanical drive)

Displacement
6 cc/rev to 200 cc/rev

Noise Level
Low (typically <72 dB)

Port Size
1/2" to 2" BSP/NPT

Cartridge Kit
Replaceable design for quick maintenance

Maximum Speed
Up to 2400 RPM (for selected models)

Shaft Type
Keyed or Splined Shaft

Bearing Type
Heavy duty roller bearings

Weight
Ranges from 10 kg to 80 kg depending on model

Model Variants
Single, Double, Triple Vane Pump options

Rotation
Clockwise or Counter-Clockwise

Surface Treatment
Anti-corrosive coating

Fluid Type
Mineral-based hydraulic oils

VELJAN Denison Hydraulic Vane Pumps Trade Information

Minimum Order Quantity
1 , , Number

Main Domestic Market
All India

About VELJAN Denison Hydraulic Vane Pumps

DENISON Hydraulics Vane pumps& Cartridge kits:

MODEL:T6C,T6D,T6E,T6CC,T6DC,T6EC,T6ED,T7 SERIES,T6DCC

Cartridgekits,shafts,seal kits, complete pumps available ex stock.

Versatile Pump Models for Dynamic Applications

VELJAN Denison Vane Pumps are available in single, double, and triple vane options, catering to various flow and pressure requirements. Each variant supports high-speed operations up to 2400 RPM, making them ideal for press machines, injection molding, material handling, and more. Their wide displacement range provides engineering flexibility for both industrial and mobile hydraulic systems.

Efficient and Quiet Hydraulic Performance

Engineered for low noise levels under 72 dB, these pumps use high-quality materials and advanced design to deliver excellent volumetric and mechanical efficiency. With replaceable cartridge kits and heavy-duty bearings, maintenance is quick and downtime is minimized. The pumps operate reliably with mineral-based hydraulic oils, supporting fluid temperatures between -20C to +80C.

Robust Construction for Demanding Environments

Constructed from cast iron and alloy steel, VELJAN Denison Vane Pumps feature anti-corrosive coatings and high-pressure seals that ensure longevity even in harsh settings. Their compact build and flexible mounting options (flange or foot) facilitate easy installation and integration with electric motors or engine couplings. Designed with threaded and flange port choices, they adapt seamlessly to diverse hydraulic systems.

FAQ's of VELJAN Denison Hydraulic Vane Pumps:

Q: How do I select the appropriate VELJAN Denison Hydraulic Vane Pump model for my application?

A: To choose the correct pump model, consider required displacement (6 cc/rev to 200 cc/rev), operating pressure (up to 320 bar), flow rate (10 to 300 LPM), port size, mounting type, and your system's speed and force needs. Different model variants-single, double, or triple vane-offer tailored solutions for various industrial and mobile hydraulic systems.

Q: What maintenance process should I follow for these hydraulic vane pumps?

A: VELJAN Denison Vane Pumps feature replaceable cartridge kits, allowing quick servicing without complete disassembly. Regularly check and replace oil seals, monitor bearing condition, and ensure the hydraulic fluid temperature stays within the recommended range (-20C to +80C). This routine enhances pump efficiency and longevity.

Q: Where can these pumps be used, and what are typical applications?

A: These hydraulic vane pumps are suitable for a wide range of uses, including industrial presses, injection molding machines, material handling systems, and mobile hydraulics in vehicles. Their robust construction and high efficiency make them ideal for heavy-duty, continuous operations in both fixed and variable displacement settings.

Q: What fluid types are compatible with VELJAN Denison Hydraulic Vane Pumps?

A: Only mineral-based hydraulic oils are recommended for optimal performance and longevity. Using incorrect fluids may compromise sealing materials and internal components, affecting operational reliability.

Q: How does the replaceable cartridge kit benefit my maintenance schedule?

A: The interchangeable cartridge design enables fast replacement during maintenance, reducing downtime and ensuring smooth operation. This feature is especially valuable in high-demand environments where quick serviceability is essential.

Q: What advantages do keyed and splined shafts offer in these pumps?

A: Keyed and splined shaft options provide compatibility with a range of coupling setups, improving torque transmission and installation flexibility. This ensures the pump suits various drive methods, whether powered by electric motors or engines.

Q: What is the recommended temperature range for operating these pumps?

A: For reliable operation, the recommended hydraulic fluid temperature range is between -20C to +80C. Operating outside this range can affect pump efficiency and may lead to premature wear or damage.
